Illustration of the Routh Hurwitz Criterion (Control Theory)

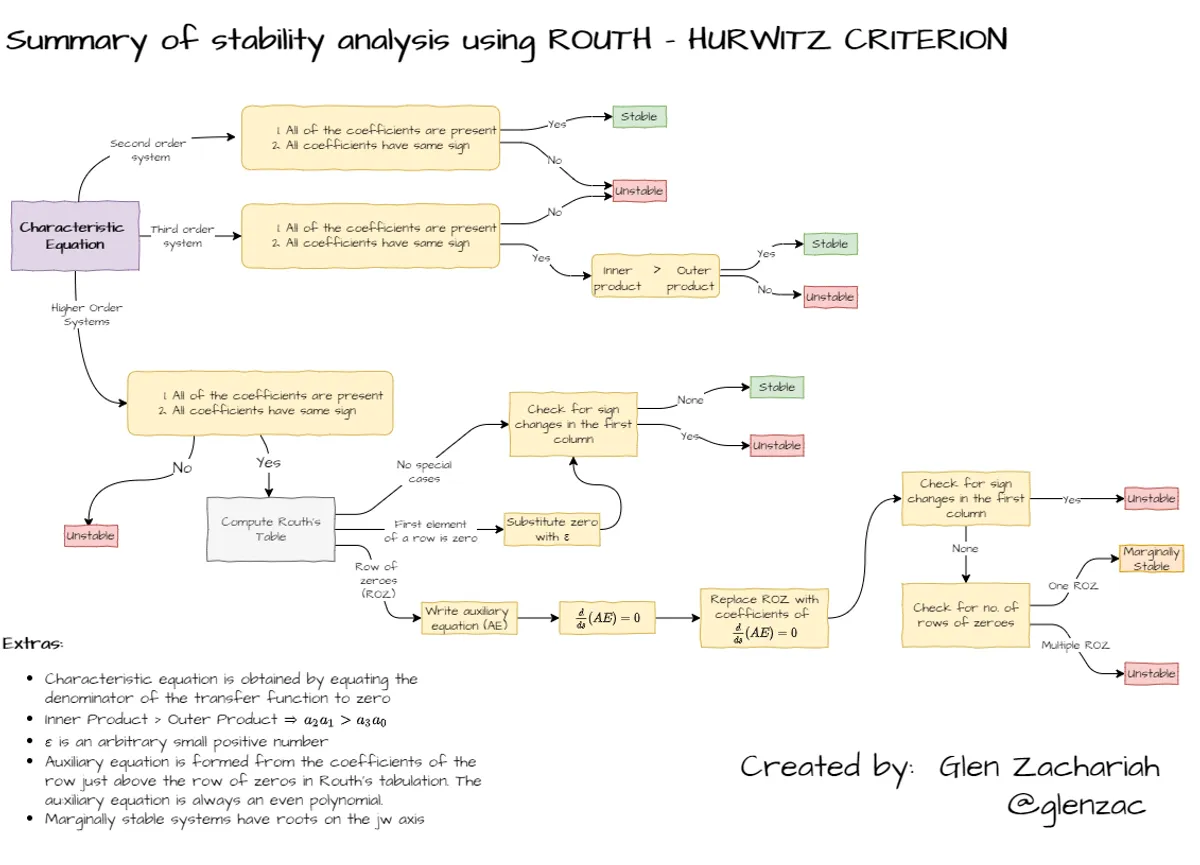

Here’s a study aid that I had created a while ago. It tries to pictorially summarize stability analysis using the Routh Hurwitz criterion in Control Theory.

---

---

Here’s the high resolution image:

DOWNLOAD
