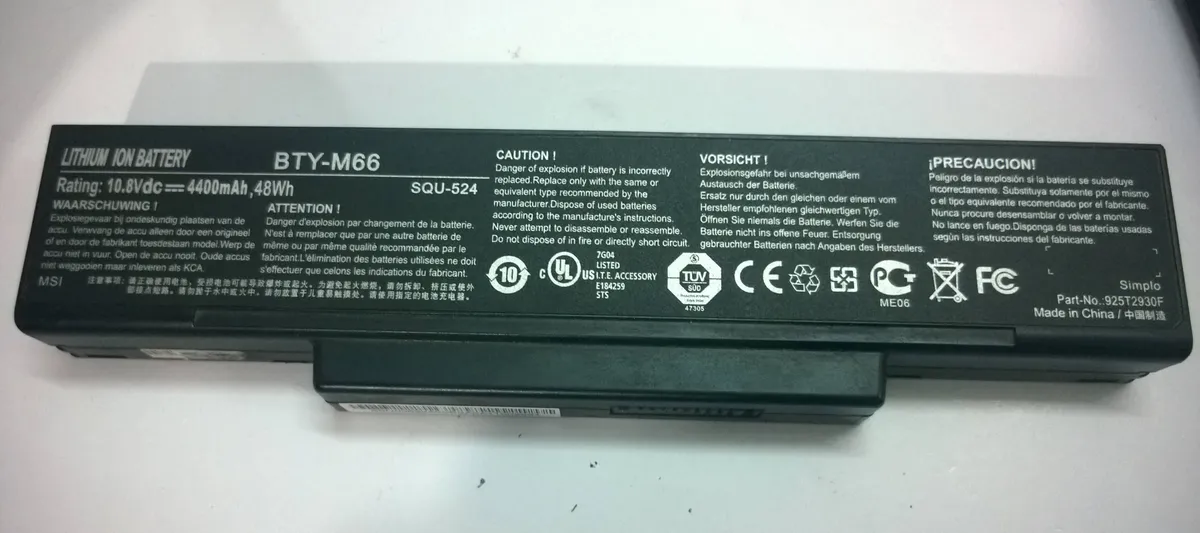

Laptop Battery at stake!

Pretty big a battery compared to the paltry 2200mAh batteries that come with Lenovo laptops like mine :(

So this is from an old MSI laptop that stopped working (all my attempts at bringing it to life also failed).

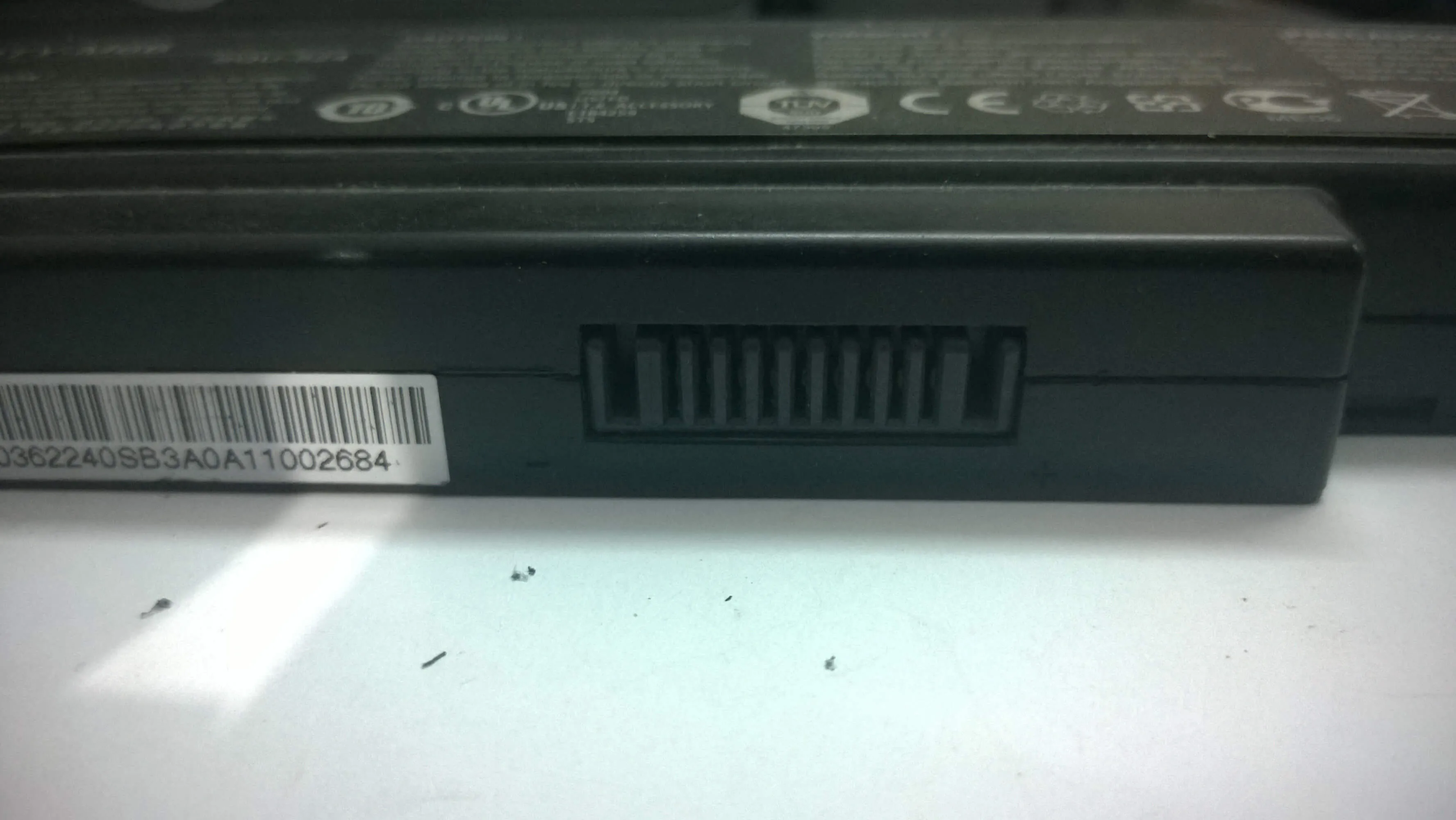

WP_20181101_20_20_38_Pro

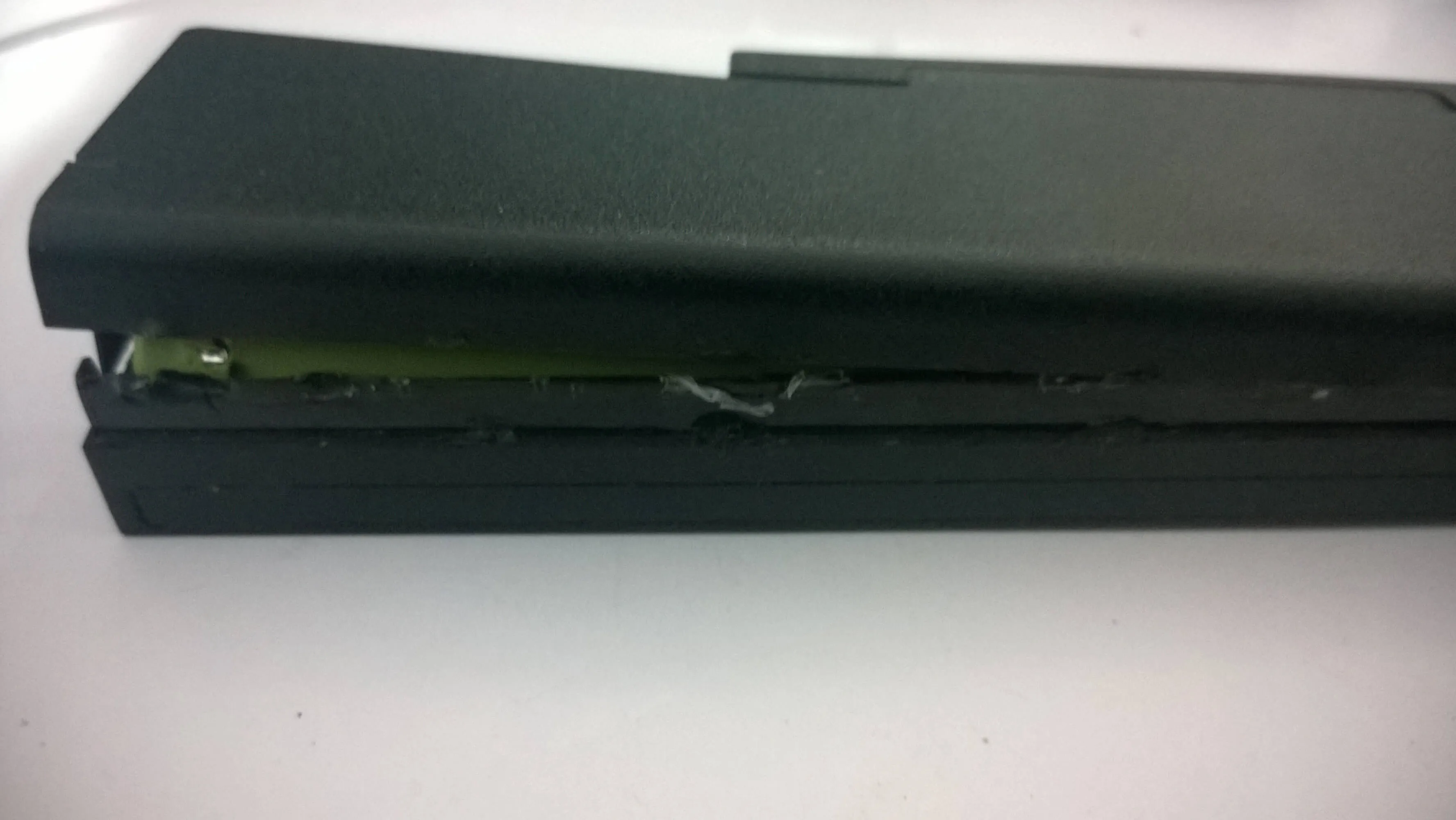

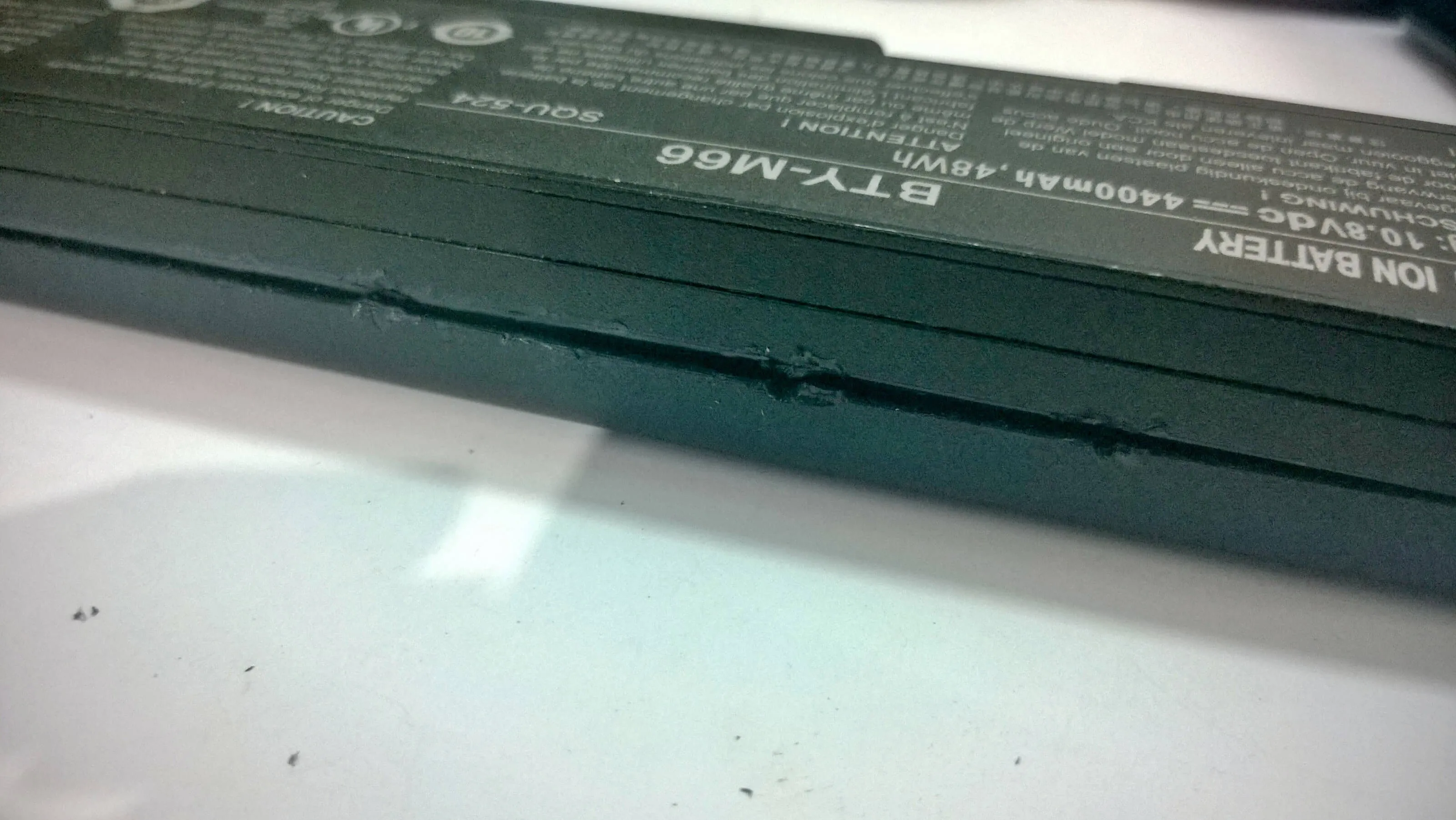

The enclosure was pretty solid and initial attempts to pry it open failed miserably. I then had to use a bit of force 🔨 (fully knowing the risks 🔥 involved and being ultra careful).

WP_20181101_20_20_07_Pro

WP_20181101_20_26_09_Pro

WP_20181101_20_29_41_Pro

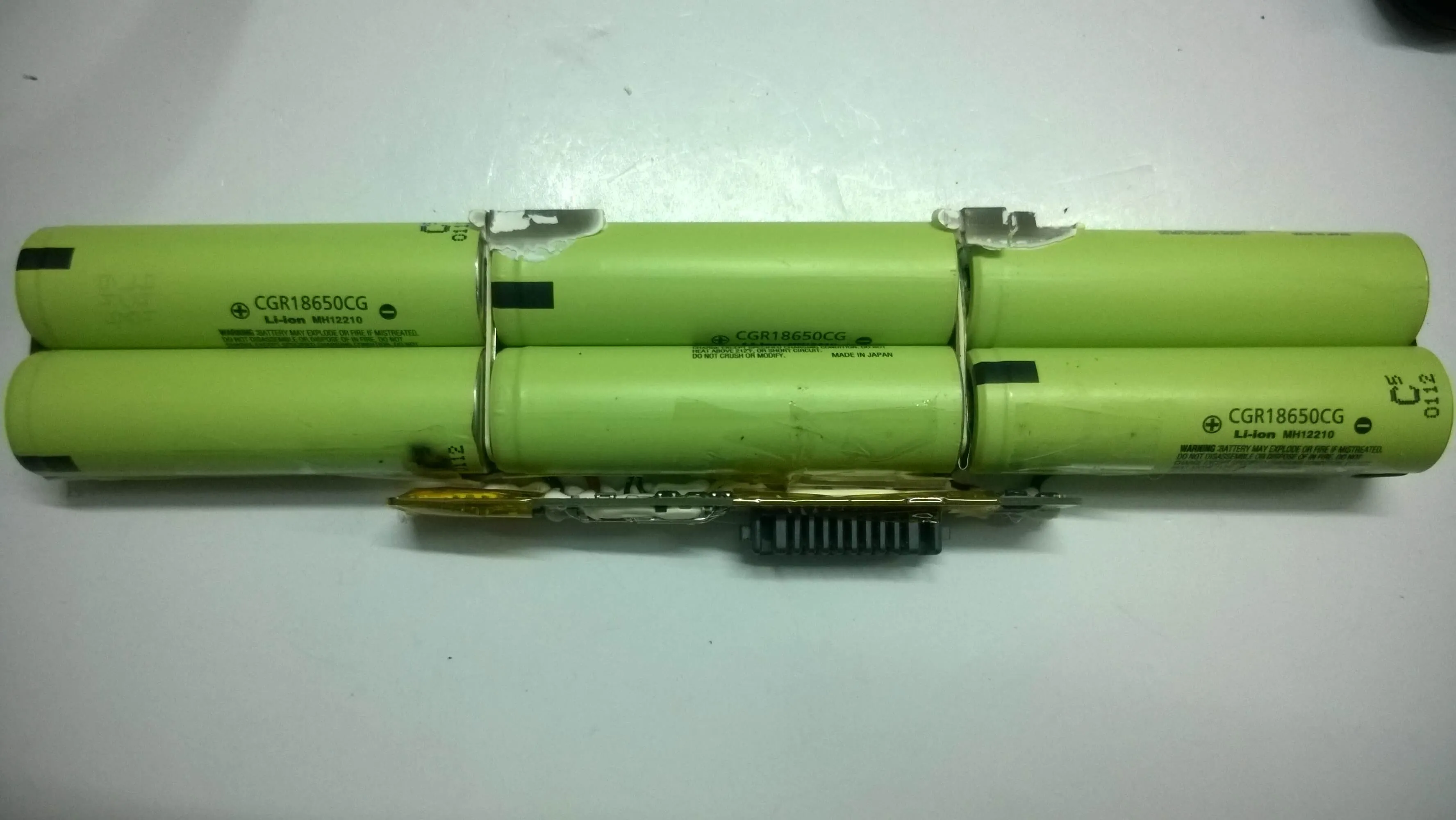

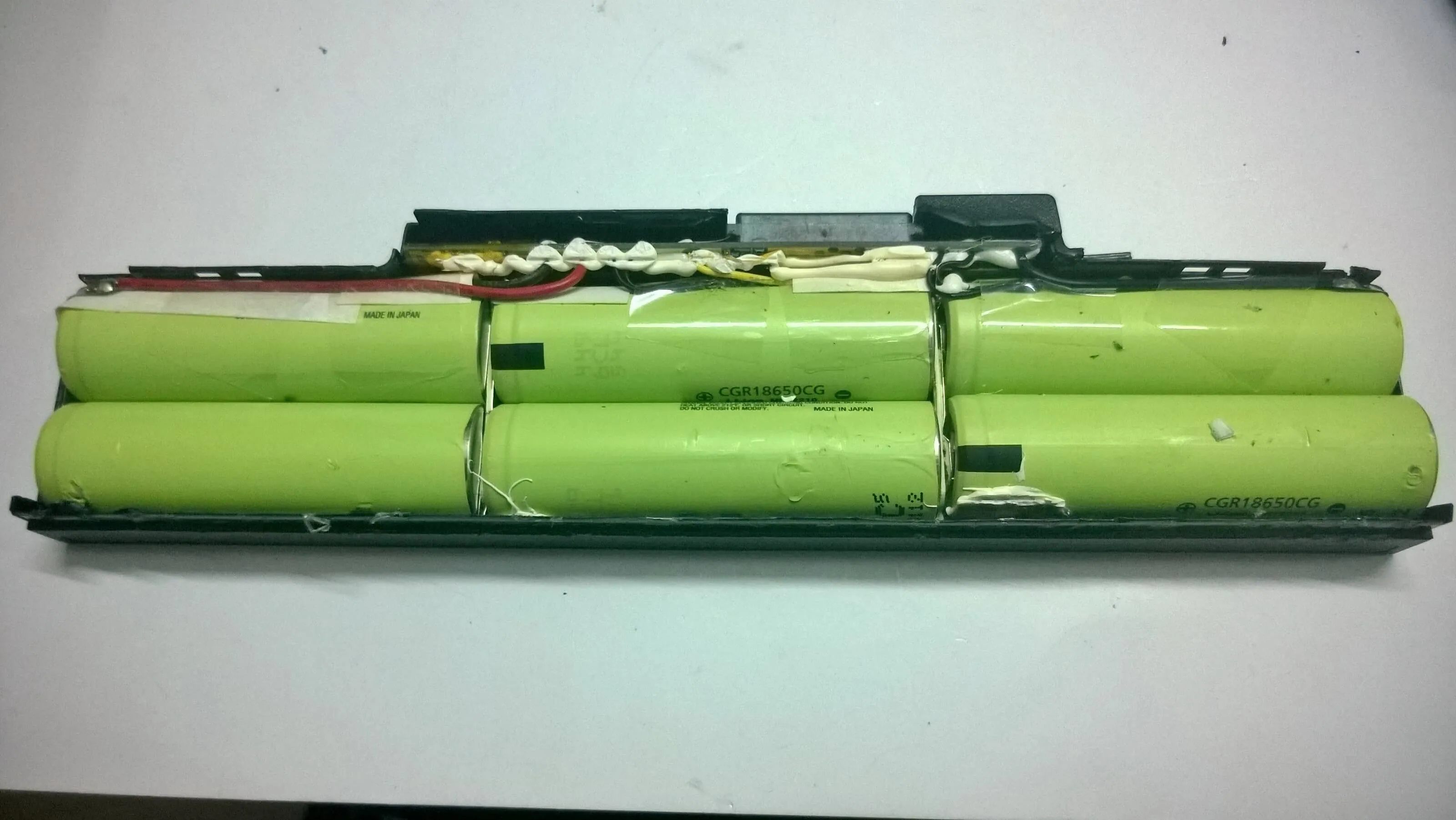

Neat stacks of 6 lithium-ion batteries.

WP_20181101_20_29_51_Pro

WP_20181101_20_39_41_Pro

WP_20181101_20_39_50_Pro

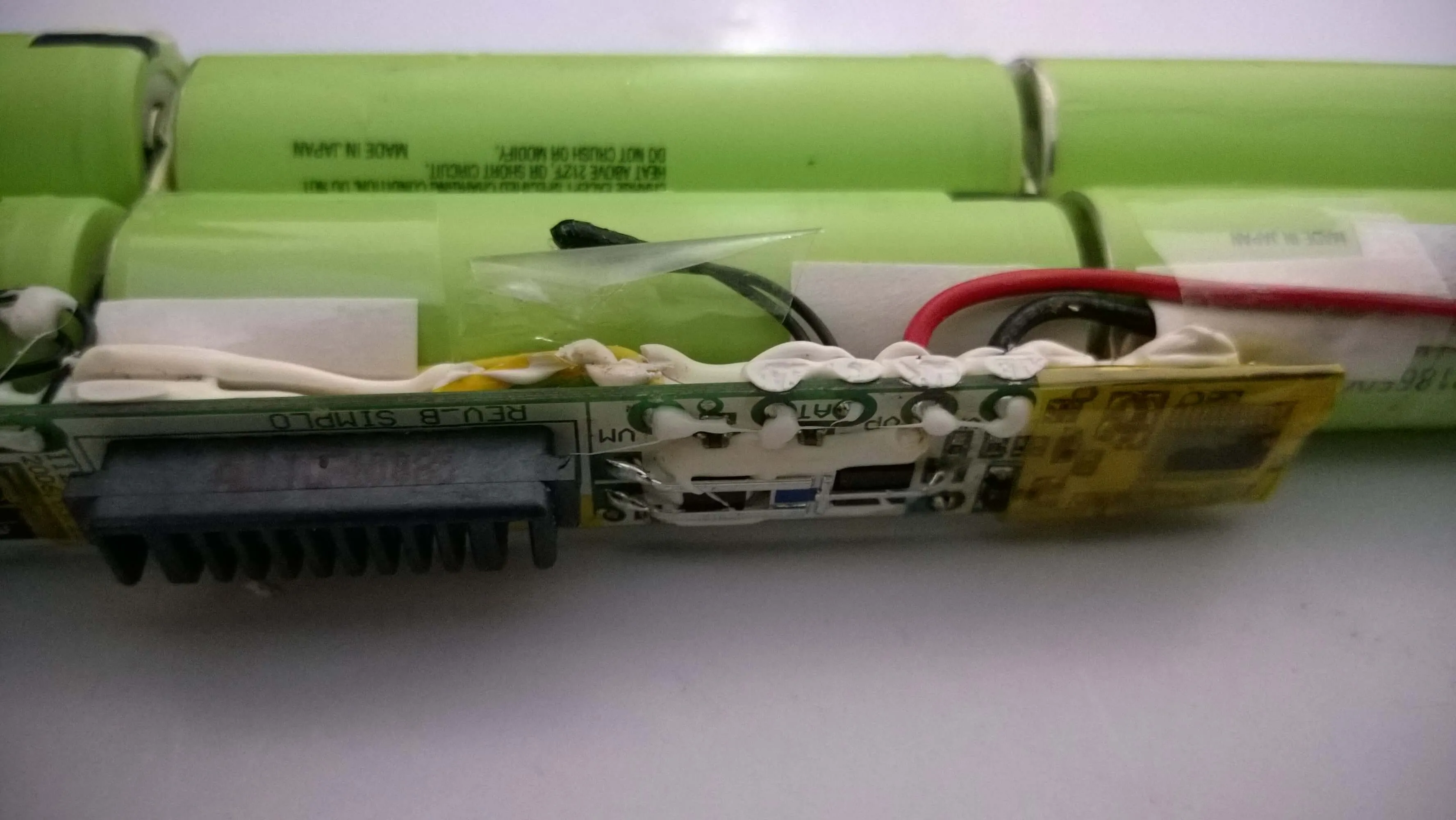

WP_20181101_21_15_42_Pro

WP_20181101_21_16_09_Pro

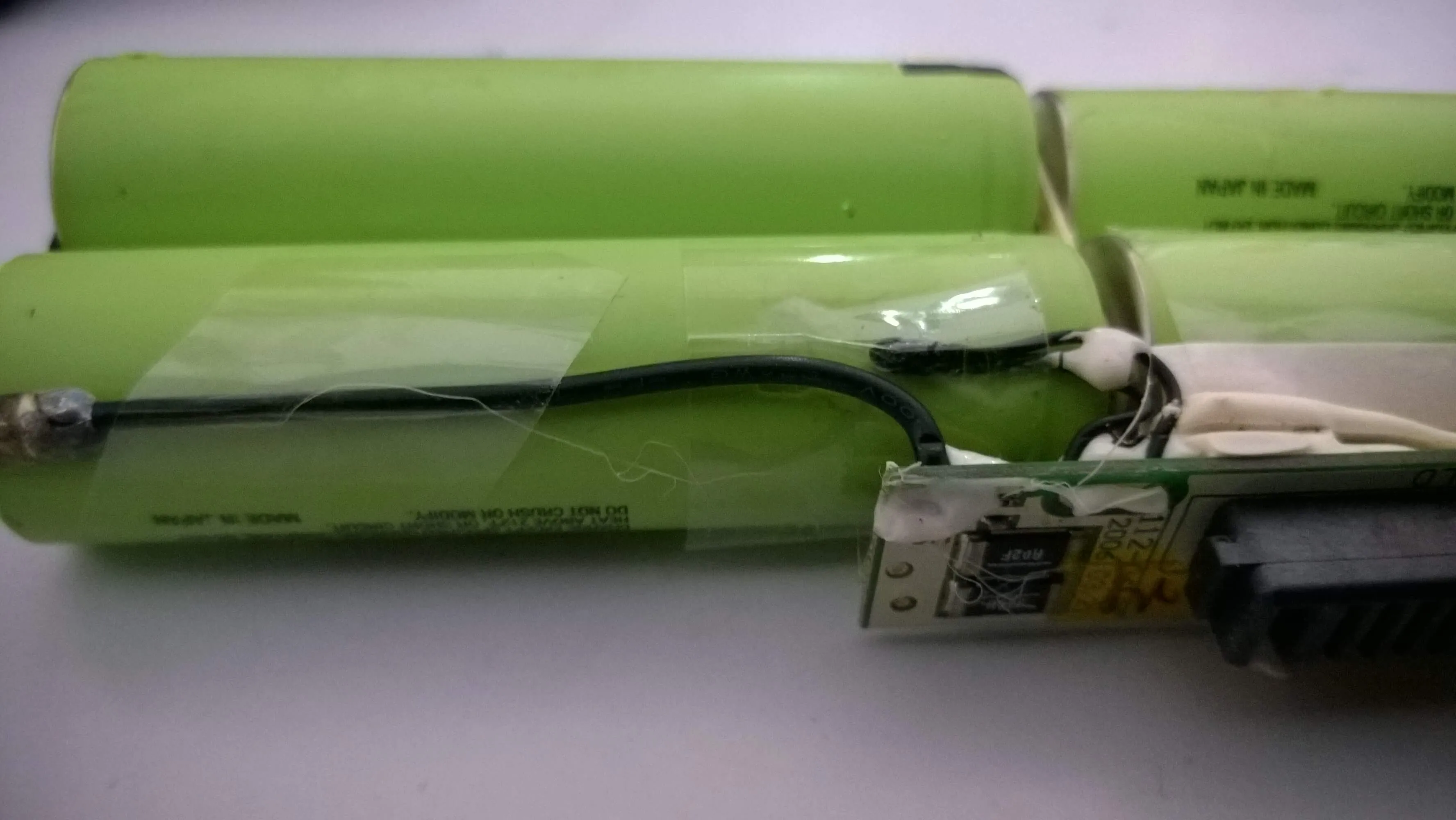

So the voltage comes to around ~ 3.7 * 3 =  ~ 11.1 V

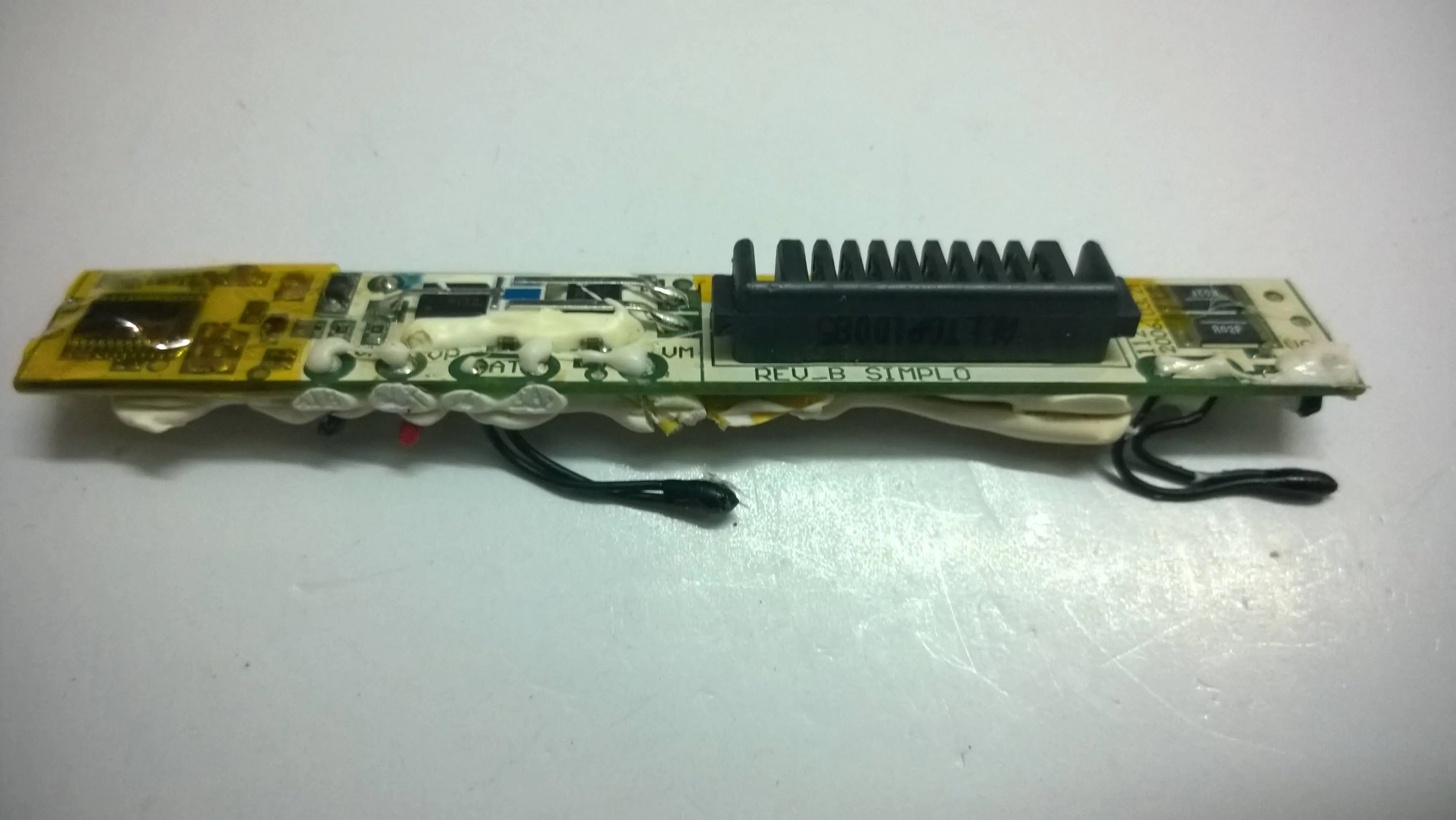

WP_20181102_21_17_19_Pro

WP_20181102_21_18_08_Pro

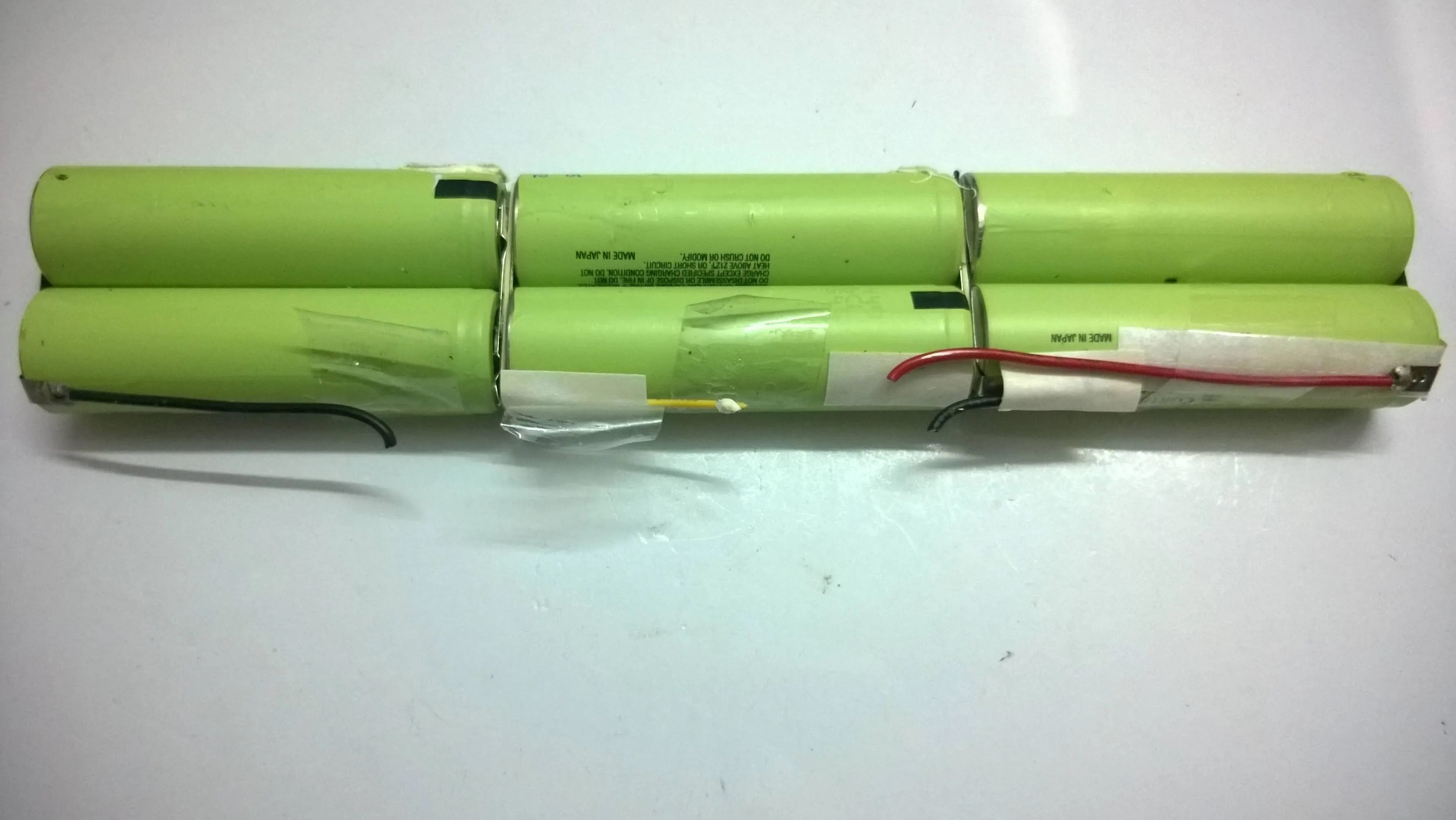

I plan to use this as a power supply or perhaps make a power bank. These are the standard 18650 type batteries.

I’m planning to charge these using a Li-ion charger I’d made earlier and see if the batteries are any good.

More updates later.
