A simpler PSoC CapSense Proximity switch example

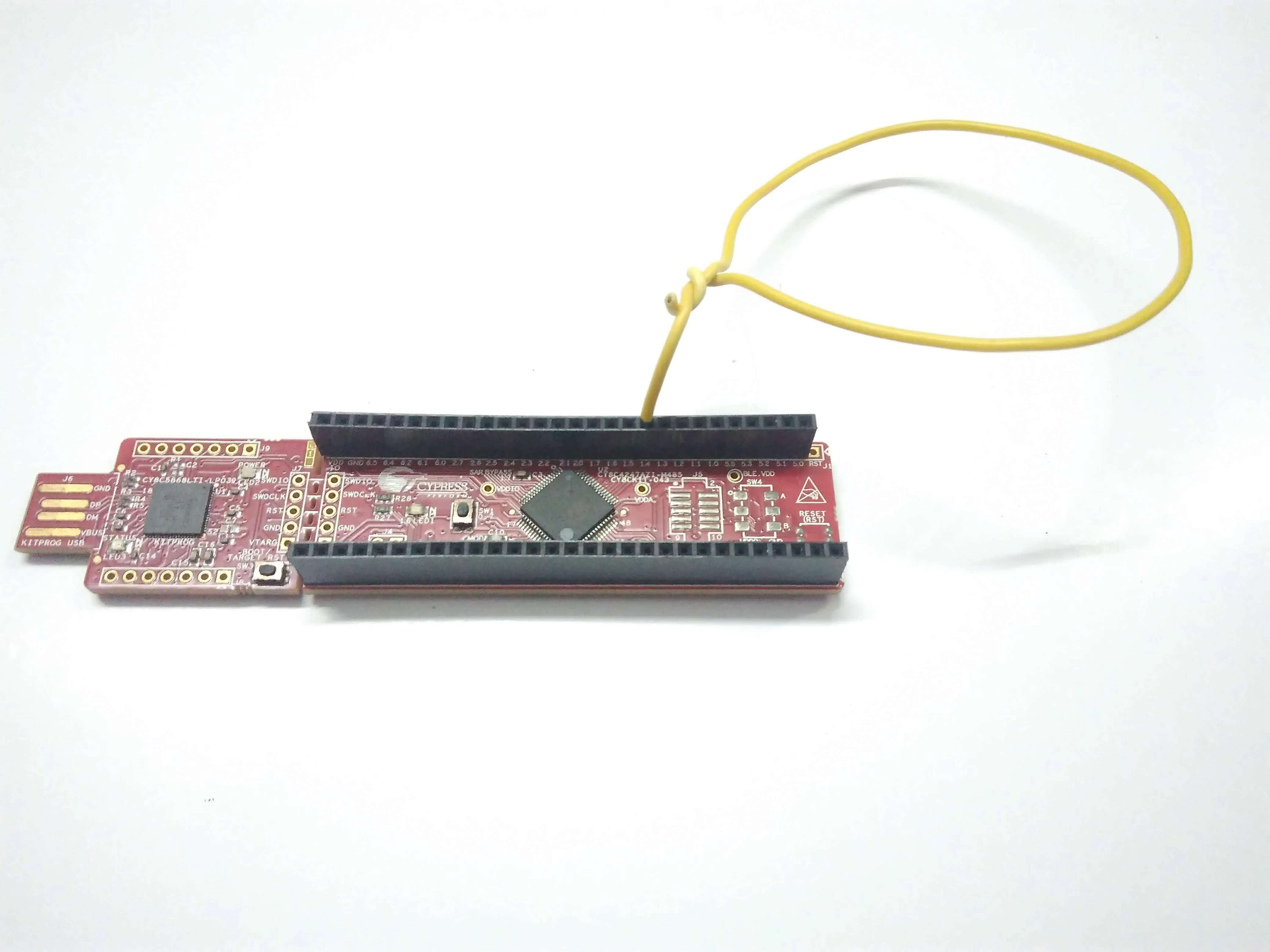

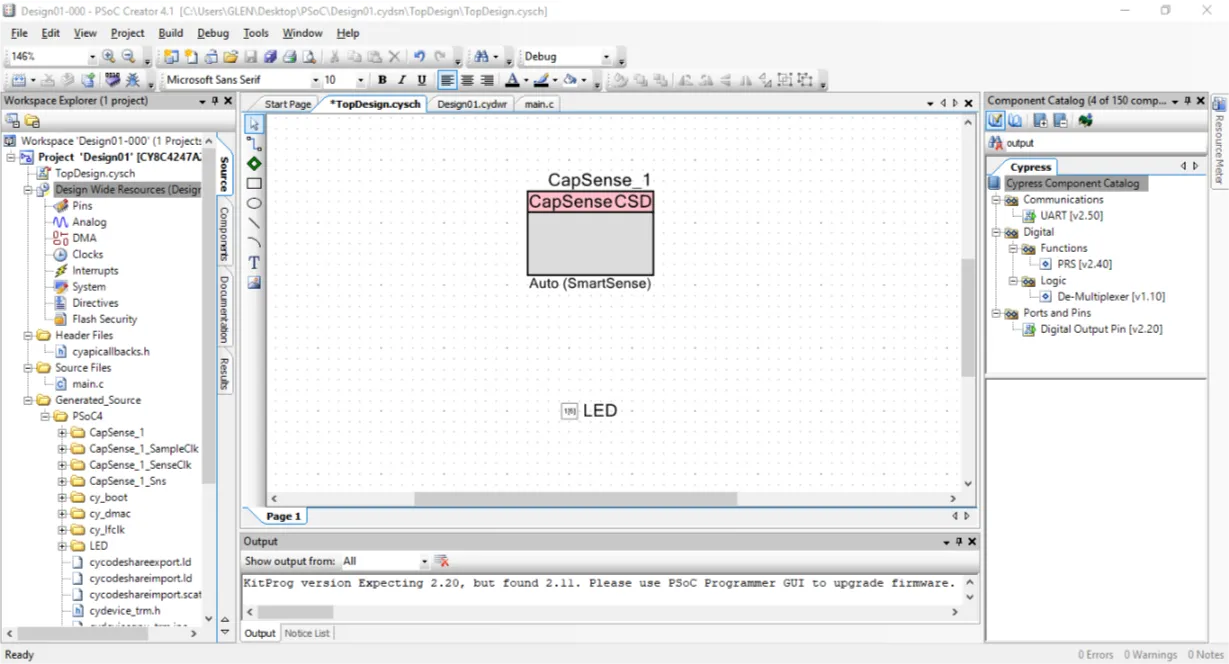

The built-in Capsense example of the CY8KIT-043 PSOC 4200M is a bit complex. So I searched their tutorials for simpler ones and found a very good one but it was implemented on a different PSoC chip. I stole the DWR (design wide resources) and the code from there and used my specific bootloader to flash my chip.

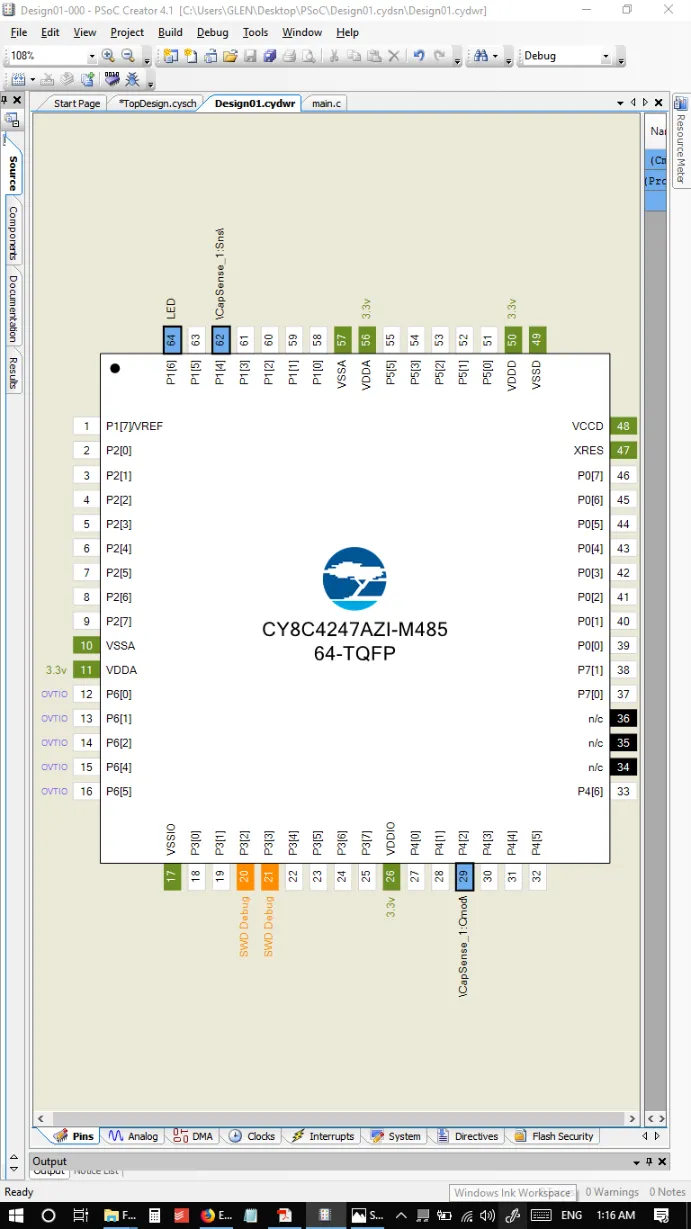

Then mapped the pins as follows: The code is as follows:

#include "project.h"
int main(void)
{
CyGlobalIntEnable; /* Enable global interrupts. */
CapSense_1_Start();
CapSense_1_EnableWidget(CapSense_1_PROXIMITYSENSOR0__PROX);
CapSense_1_InitializeAllBaselines(); /* To take care of stray capacitances*/
CapSense_1_ScanEnabledWidgets();

for(;;)
{
/* Place your application code here. */
if (CapSense_1_IsBusy()==0)
{
LED_Write(CapSense_1_CheckIsWidgetActive(CapSense_1_PROXIMITYSENSOR0__PROX));
CapSense_1_UpdateEnabledBaselines();
CapSense_1_ScanEnabledWidgets();

}

}
}

The next thing to try is testing the same with many CSD (CapSense Devices) to turn on multiple LEDs.

As per the datasheet most of the general pins support CSD.

Update:

It worked perfectly. One CSD module was enough for all the proximity detectors. I only added digital outputs in each case and assigned them different pin numbers and above all made the necessary modifications in the code.
